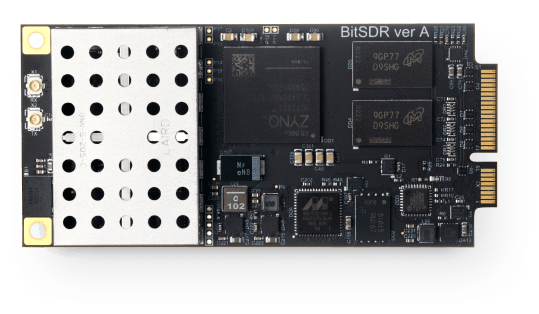

BitSDR™ is a high performance, embeddable system-on-module (SoM) designed in a tiny mini PCIe form factor for wide variety of applications.

Target applications:
– Tactical communications
– SATCOM
– Unmanned platforms
– Networking devices
– Internet of Things
– SIGINT
– Radar
– Electronic Warfare
Based on Xilinx' Zynq-7020 and Analog Devices' AD9364 it offers extremely broad frequency range 70-6000 MHz with up to 56 MHz of instantaneous bandwidth combined with powerful computational resources operating in industrial temperatures from -40°C to +85°C. SoM is optimized for small size, weight, and power consumption (SWaP), allowing integration into small to large, power constraint systems and platforms. BitSDR™ supports embedded Linux and can be shipped with either preinstalled firmware (Linux as PS), firmware and waveform (PS and PL) or factory blank.
01
TECHNICAL SPECIFICATIONS
02
Wideband RF Transceiver
Analog Devices AD9364
Instantaneous bandwidth
70 – 6000 MHz (1Rx + 1Tx)
Up to 56 MHz
TCXO
40 MHz TCXO ref clock, 500 PPB stability
Four band Rx pre-select
filter bank
70 – 225 MHz; 225 – 512 MHz; 70 – 512 MHz; unfiltered
Physical Specs
Size
Weight
85mm x 40mm x 7mm (shielded)
15 grams
Temperature rating
-40 to +85 deg C
Typical power
consumption
3.5W
Linux Computer
FPGA
CPU
Xilinx Zynq XC7Z020-2CLG400I
Dual-core ARM Cortex A9
DDR3L RAM
2x512 MB
QSPI flash memory
32 MB
I/O Specs
1×Ethernet 100Base-T
1×USB 2.0 OTG
1×SDIO (SD card)
JTAG
1×UART
FPGA done led
2×GPIO
EVALUATION KIT

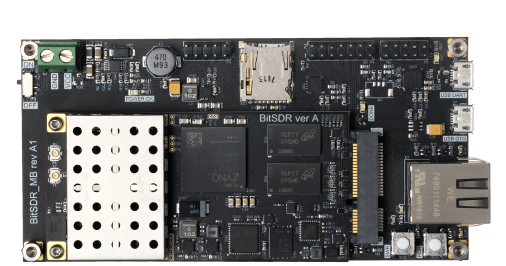

BitSDR™ with BitSDR_MB carrier board is a complete evaluation kit for designers interested in rapid prototyping and proof-of-concept development.
Evaluation kit contains Ethernet 100Base-T, USB 2.0 (OTG), SD card, UART, GPIO and JTAG interfaces to enable fast evaluation and simplify development.
Accessing mini PCIe interface integrators can embed BitSDR™ SoM into a custom platform. Using SoM's datasheet and reference design, developers can easily design their own carrier board, plug-in BitSDR™, and start their application development with a proven SDR sub-system with small SWaP footprint.
