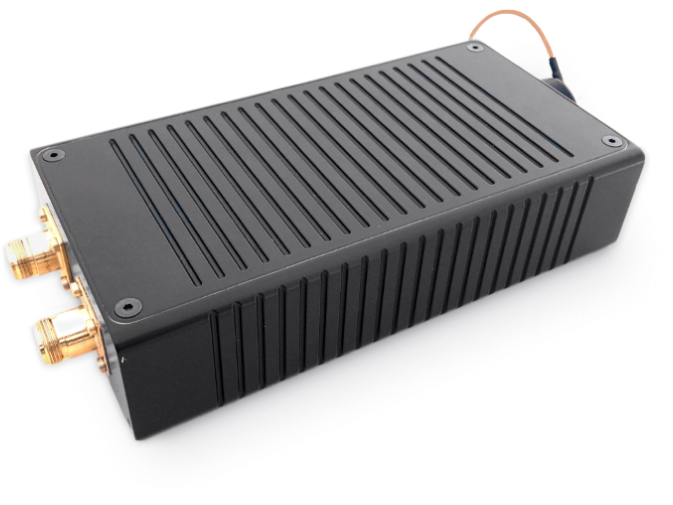

TACTICAL EDGE ROUTER TWR-205

Highly flexible SDR architecture, based on BitSDR ™ system-on-module, allows rapid adjustment to any customer specific requirements using different optimization strategies: distance, throughput, balance in LOS and BLOS scenarios etc.

TRW-205 provides a fully featured embeddable tactical data link designed for integration into mobile platforms such as UAV, UGV, armored vehicles and other network systems operating at tactical edge.

01

MAIN FEATURES

– Frequency range: 47–2700 MHz
– RF output power: 5/10/25 W version
– Data rate: from 10 Kbps up to 20 Mbps
– Excellent receiver sensitivity

– Seamless IP integration
– Adaptive waveform with MANET
– Flexible SDR architecture
– SDN support

02

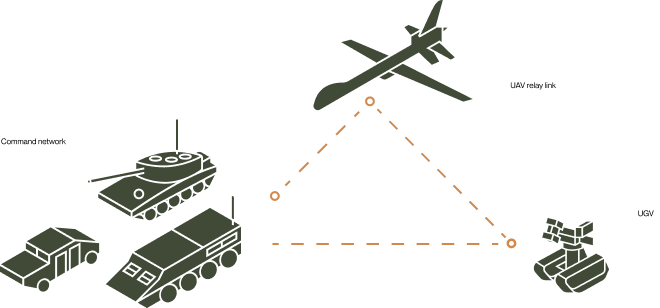

WAVEFORM PROVIDES

03

– IP network integration simplicity
– Spectrum management
– Ability to operate in a denied environment

TECHNICAL SPECIFICATIONS

04

Router Features

Size

Weight

208×110×49mm

1.5 kg

RF connector

N female

Frequency range

Typical power consumption

47–2700 MHz

10 W (Rx), 30 W (Tx)

Tx output power

5/10/25 W (factory installed)

Gain flatness

±1.5 dB (<1 GHz), ±3 dB (>1 GHz)

Supply voltage

18–36 V

Interfaces

Waveform

Ethernet 100Base-T

SDRN Release 1.0

IP throughput

Up to 20.9 Mb/s

Protocols

MANET

IPv4, IPv6, DHCP, DNS

Up to 8 hops

SDN

OpenFlow v1.5

Accessories

Power, Ethernet, USB cables

Environmental

IPX8 according to IEC 60529, IEC 60068-2, MIL-STD 810H

DOCUMENTATION

All Documents

TWR-205 brochure, Rev. B

TWR-205 Mechanical drawing
