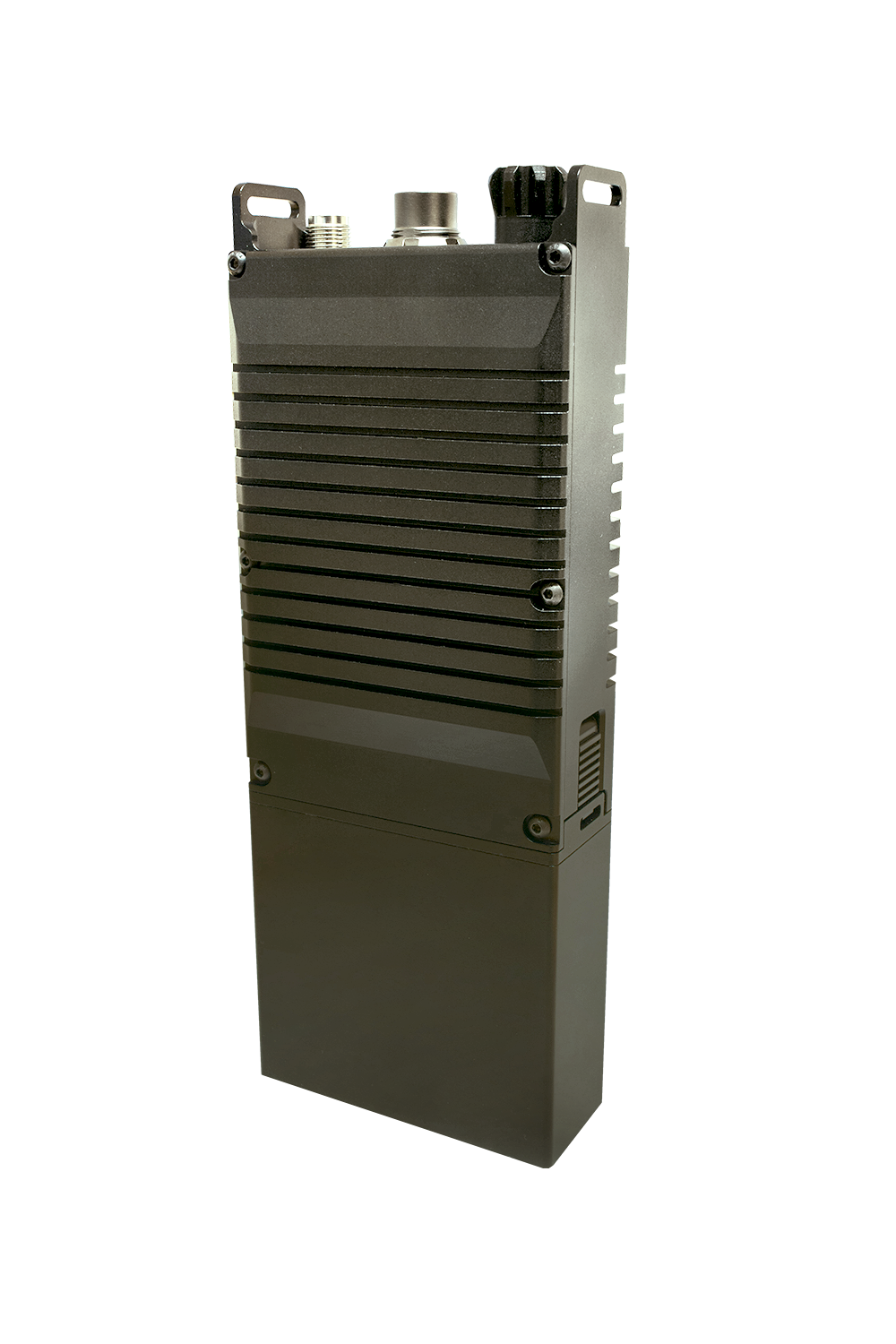

TACTICAL EDGE ROUTER TWR-207H

Highly flexible software defined radio (SDR) architecture, based on BitSDR™ system-on-module, allows rapid adjustment to any customer specific requirements while maintaining air interface compatibility with other TWR products

TRW-207H is a handheld wireless router designed for portable and dismounted applications requiring seamless integration of various client equipment (smartphones, tablets, laptops etc) into IP networks, such as tactical Internet.

01

MAIN FEATURES

– Frequency range: 47–2700 MHz
– RF output power: 5 W
– Data rate: from 10 Kbps up to 20 Mbps
– Bandwidth: from 25 kHz up to 20 MHz

– Seamless IP integration
– Adaptive waveform with MANET
– Interfaces: Ethernet, USB, WiFi

02

TYPICAL APPLICATION

03

– Client equipment integration simplicity
– Supports IP data, voice, and video
– Supports ATAK and other BMS
– Easy to configure and operate

TECHNICAL SPECIFICATIONS

04

Router Features

Size

Weight

226×86×38 mm

650 g (without battery)

Battery power capacity

70 Wh

Typical runtime

Frequency range

16 h (90/10)

47-2700 MHz

Tx output power

5 W

Comsec

AES-256

Transsec

FHSS, configurable up to
2000 hops / sec

Channel presets

Interfaces

4-channel switch, zeroize mode

Ethernet 1000Base-T, USB2.0, WiFi

MANET

Up to 8 hops

Data

Environmental

IP Layer 3; Layer 2 bridge

IPX8 according to IEC 60529, IEC 60068-2, MIL-STD 810H

EMC

MIL-STD 461G, MIL-STD 1275D

Rf connector

TNC male

Accessories

Ethernet cable, USB cable, External power supply

(ordered separately)

DOCUMENTATION

All Documents

TWR-207H brochure, Rev. A
